CEMA Ceramic Hanger Bearings

Crown Industrial now offers Conveyor Equipment Manufacturers Association (CEMA) standard dimension and tolerance hanger bearings. These ceramic hanger bearings are made from Y-TZP Zirconia, a formulation that provides some of the toughest, strongest and longest-lasting ceramics available. It can also be up to 40% stronger than Mg-PSZ material and is manufactured to give a very fine microstructure and minimal grain boundary phase, ensuring extremely long life times and in-service quietness.

Zirconia ceramic hanger bearings provide a range of benefits:

  • Major increase in bearing life
  • Increase in life of journal and shaft, with a significant reduction in galling
  • Potential noise reduction in many applications
  • Option to use ceramic liner or replace only bottom bearing
  • Manufactured to CEMA standards


Zirconia ceramic bearings provide a range of benefits:

  • Major increase in bearing life
  • Increase in life of journal and shaft, with a significant reduction in galling
  • Potential noise reduction in many applications
  • Option to use ceramic liner or replace only bottom bearing
  • Manufactured to CEMA standards

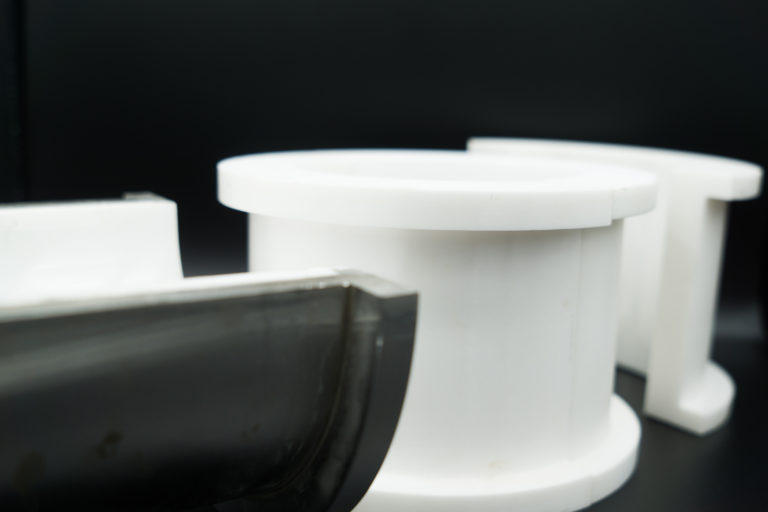

We produce the following components for use in Screw Conveyor Ceramic Hanger Bearing Systems:

  • Traditional solid ceramic hanger bearings, CEMA standard dimension bearing halves
  • Hybrid, metal carrier with a ceramic sleeve, CEMA standard dimension bearing halves
  • Sleeves for placement in hybrid bearings or replacement of Stellite

ceramic bearings

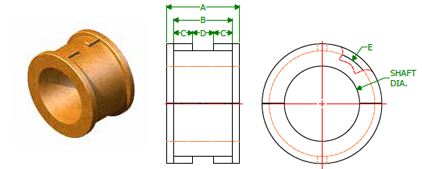

Style 226 Hanger Bearings

bearing schematic
Shaft DiameterABCDE (dia.)Weight (lbs)Part Number
1.5″1-15/16”1-9/16”1/2”9/16”2-3/16”2CHB.1-12
2"1-15/16”1-9/16”1/2”9/16”2-13/16”4CHB.2
2-7/16"2-15/16”2-1/4”3/4”3/4”3-3/16”9 CHB.2-716
3"2-15/16”2-1/4”3/4”3/4”4-1/16”11CHB.3
3-7/16"3-15/16”3-1/4”1-1/4”3/4”4-3/4”15CHB.3-716
3-15/16"3-15/16”3-1/4”1-1/4”3/4”5-1/4”17CHB.3-1516
4-7/16"4-15/16”4-1/4”1-3/4”3/4”5-13/16”32CHB.4-716
